Titanium Fittings

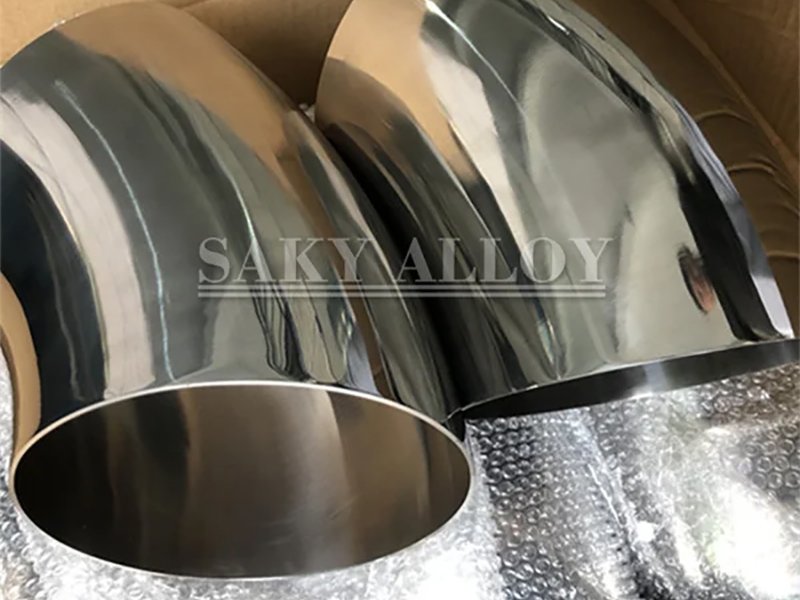

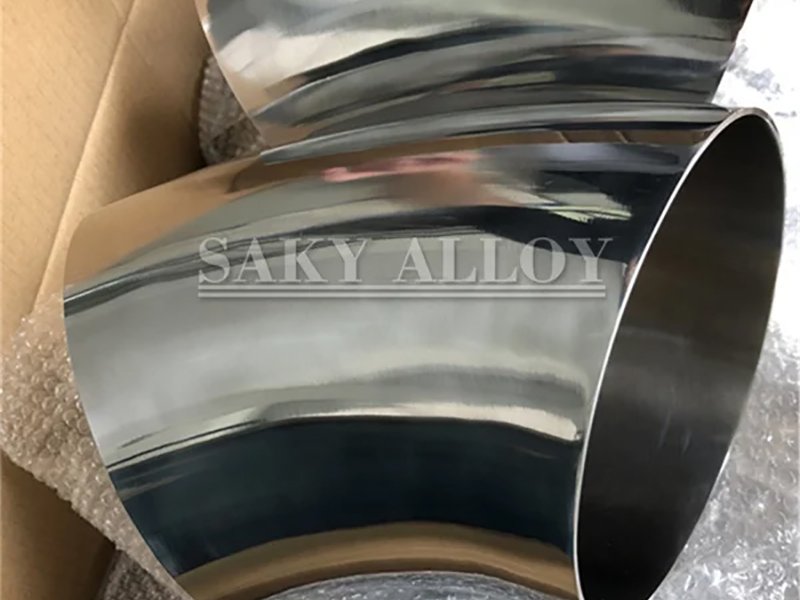

Titanium Alloy Gr 5 Buttwled Fittings
Specifications
| Standards | ASTM B363 / ASME SB363 |
| Grades | Titanium Gr 5，UNS R56400 |
| Size | 1/2″ to 24″ NB to 24″NB in |
| Class / Pressure | 15s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160 |
| Technique | Heat treated and machined |
Equivalent Grades
| Grade | WERKSTOFF NR. | UNS |
| Titanium Gr.5 | 3.7165 | R56400 |
Chemical Composition
| Grade | Ti | C | Fe | H | N | V | Al | O |
| Ti Grade5 | 90.0min | 0.1max | 0.40max | 0.015max | 0.05max | 3.5-4.5 | 5.5-6.75 | 0.20max |
Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
Features & Benefits
Titanium possesses outstanding corrosion resistance, able to withstand the corrosive effects of seawater, acids, and most chemical media.
Titanium rods exhibit an excellent strength-to-weight ratio, being one of the lightest structural materials.
Titanium is a biocompatible material, showing good compatibility with human tissues and bones.
Titanium exhibits excellent stability at high temperatures, maintaining strength and stability in high-temperature environments.
Titanium is a non-magnetic material, making it suitable for applications where magnetic sensitivity is a concern frequency operation.
Titanium has good formability, making it easy to process into various shapes.
Why Choose Us?
1.You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement. (Reports will show on requirement)
4. We guarantee to give a response within 24 hours (usually in the same hour)
5. Provide SGS TUV report.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
7. Provide one-stop service.
Packing
1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Saky Alloy’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as.
